Ultrafex Transom Steering Cable Supports

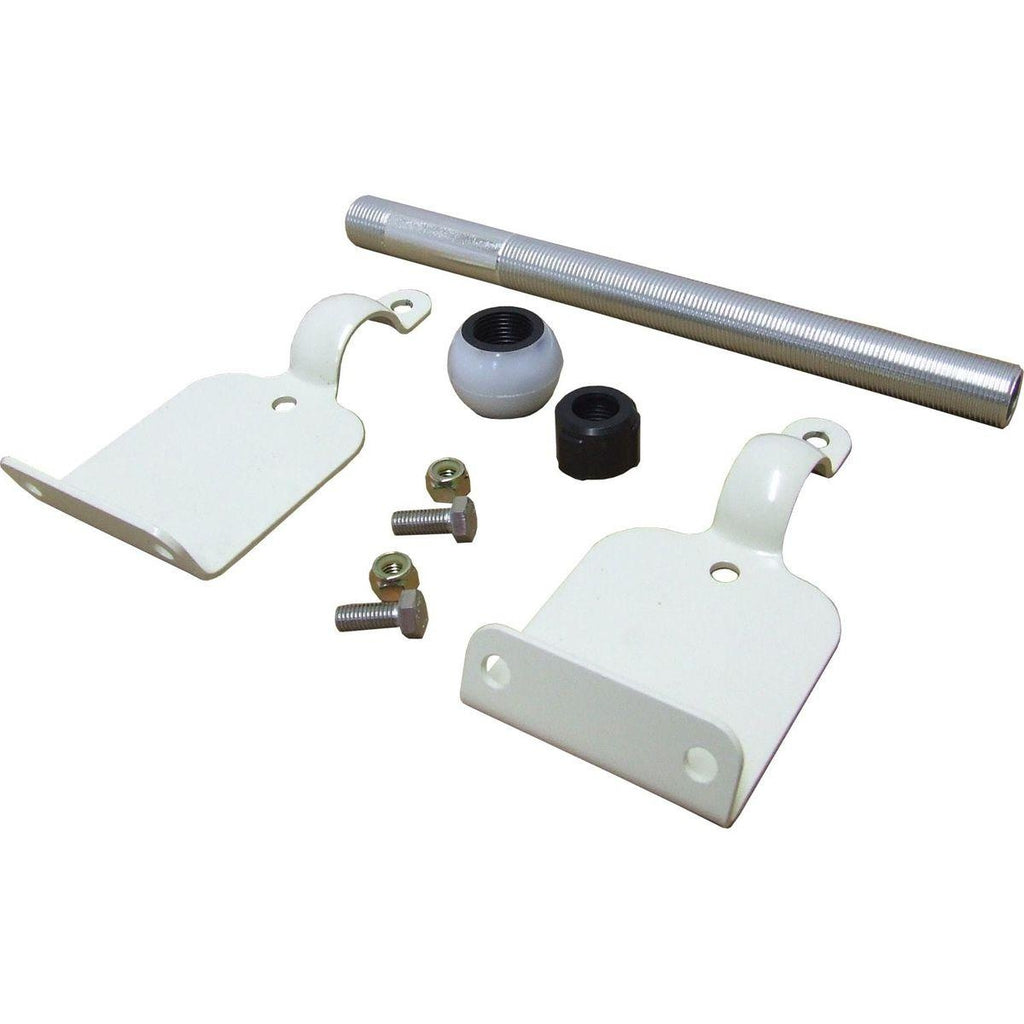

This kit attaches the steering cable to the transom of the boat, which in turns allows a lever point for the steering cable to push and pull the outboard.

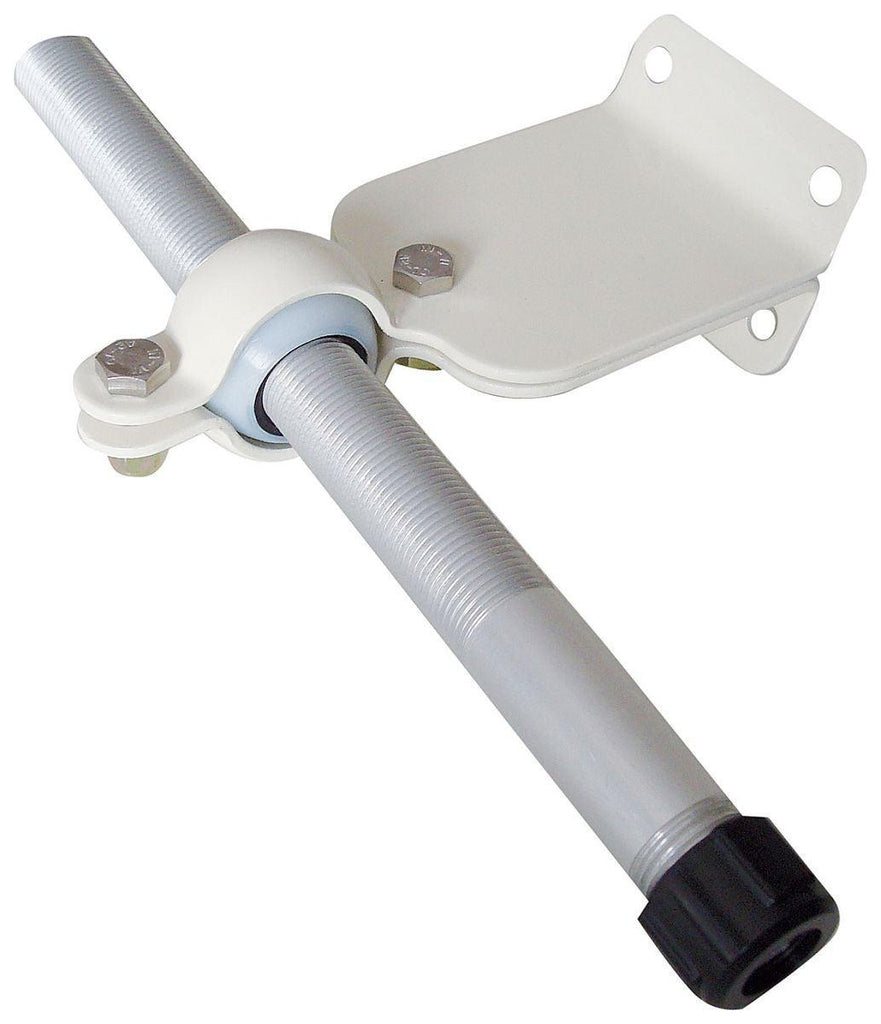

4-S61: Clamp block in corrosion resistant painted steel with alloy tube.

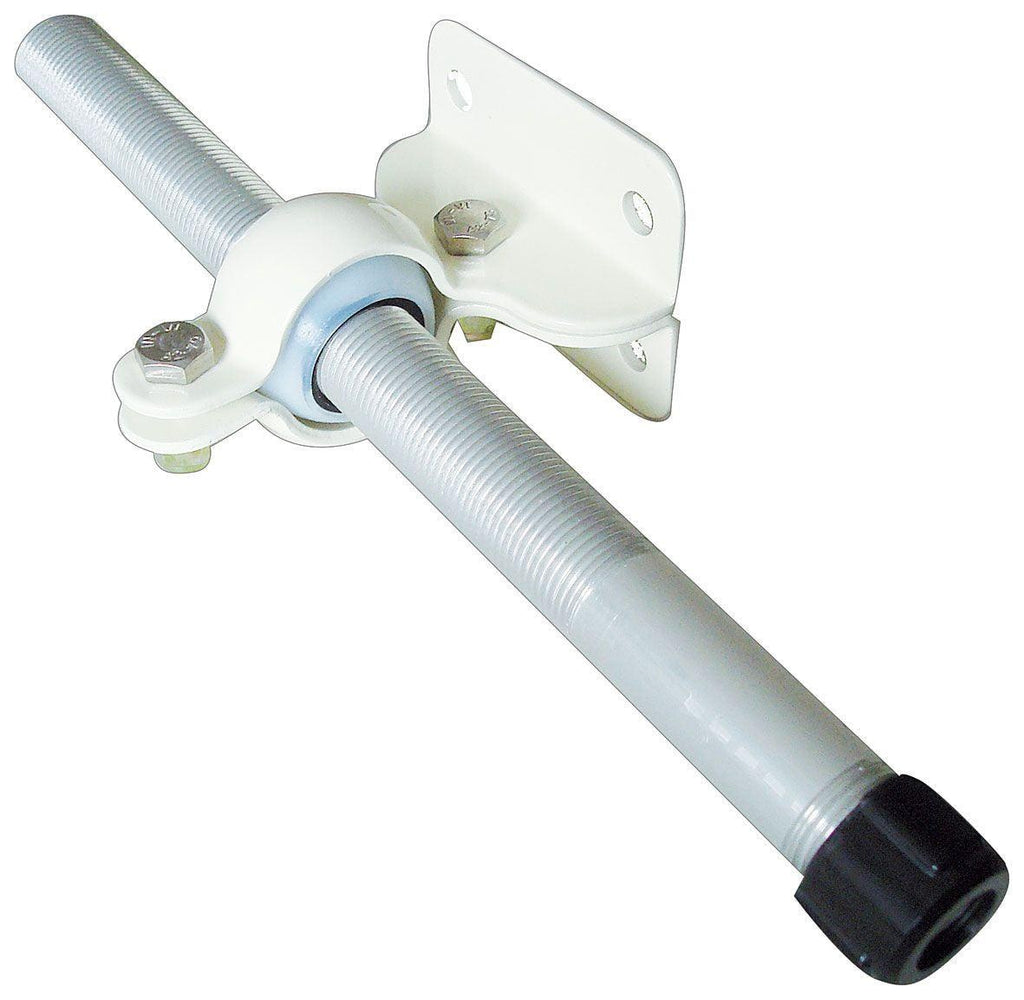

4-S62: Smaller clamp block in corrosion resistant painted steel with alloy tube.

    Suggestions and Warnings when Selecting a Mechanical Steering System

    Selection of the appropriate mechanical steering system is an important factor for the safety and functionality of your boat. The combination of engine power, hull type and boat speed influence the correct selection of the steering system. The load on the steering system increases with the boat speed and engine power; the torque generated by the propeller rotation in high power outboard applications can make it hard to steer. Big boats with displacement hulls & inboard or stern drive engines, can generate high rudder loads: in these cases a mechanical steering systems will be inadequate and we suggest the use of hydraulic steering. We always recommend consulting qualified personnel when selecting, installing and maintaining a steering system for your boat.

    Use and Maintenance

    The steering cable must be installed avoiding excessive and/or tight bends. This will provide the driver with easy handling at all speeds; reduce system inefficiency, & excess play in the system. Marine corrosion may cause the materials to deteriorate affecting manoeuvring efficiency and in the worst case, system failure. By following the engine manufacturers specifications, the steering cable end fittings and engine cable support must be cleaned and greased periodically. The steering cable must be regularly inspected. If steering becomes hard, inconsistent, cuts on the conduit surface are noticed, or any other component found damaged the cable must be replaced immediately. When storing your boat for an extended period of time we recommend removing the steering cable end fitting from its engine side support and cleaning adequately
    QUALITY SYSTEM
    The Ultraflex Quality System is certified CISQ-EQ Net by the Italian Shipping Registry (RINA), in conformity with the UNI EN ISO 9001 rule. Certification N420/96. The quality system involves all the company resources and processes starting from the design, in order to : • Assure product quality to the customer • Set up the actions to maintain and improve the quality standards constantly • Pursue a continuous process improvement to meet the market needs. The hydraulic marine products are constantly tested in order to verify their conformity with the EEC 94/25 and the ISO 10592 requirements.
