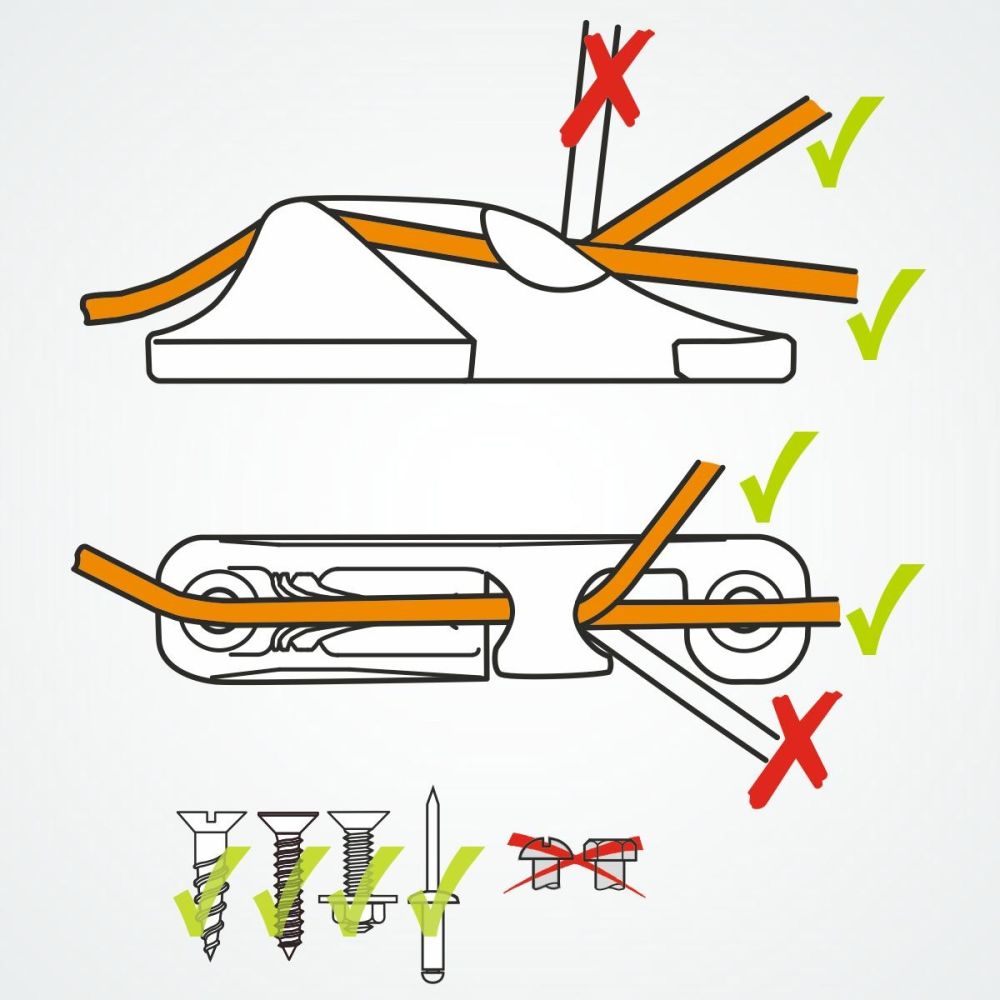

The side entry fairlead allows ropes to be hooked in for cleating

The side entry fairlead allows ropes to be hooked in for cleating, yet easily removed.  Ideal as a reaching hook. The CL217 Mk1 can be fitted with a CL814 Keeper, to keep the rope in or out of the teeth - ideal when used under a spar.  Using a CL818 Tapered Pad allows the CL217 Mk1 to mounted at an angle.

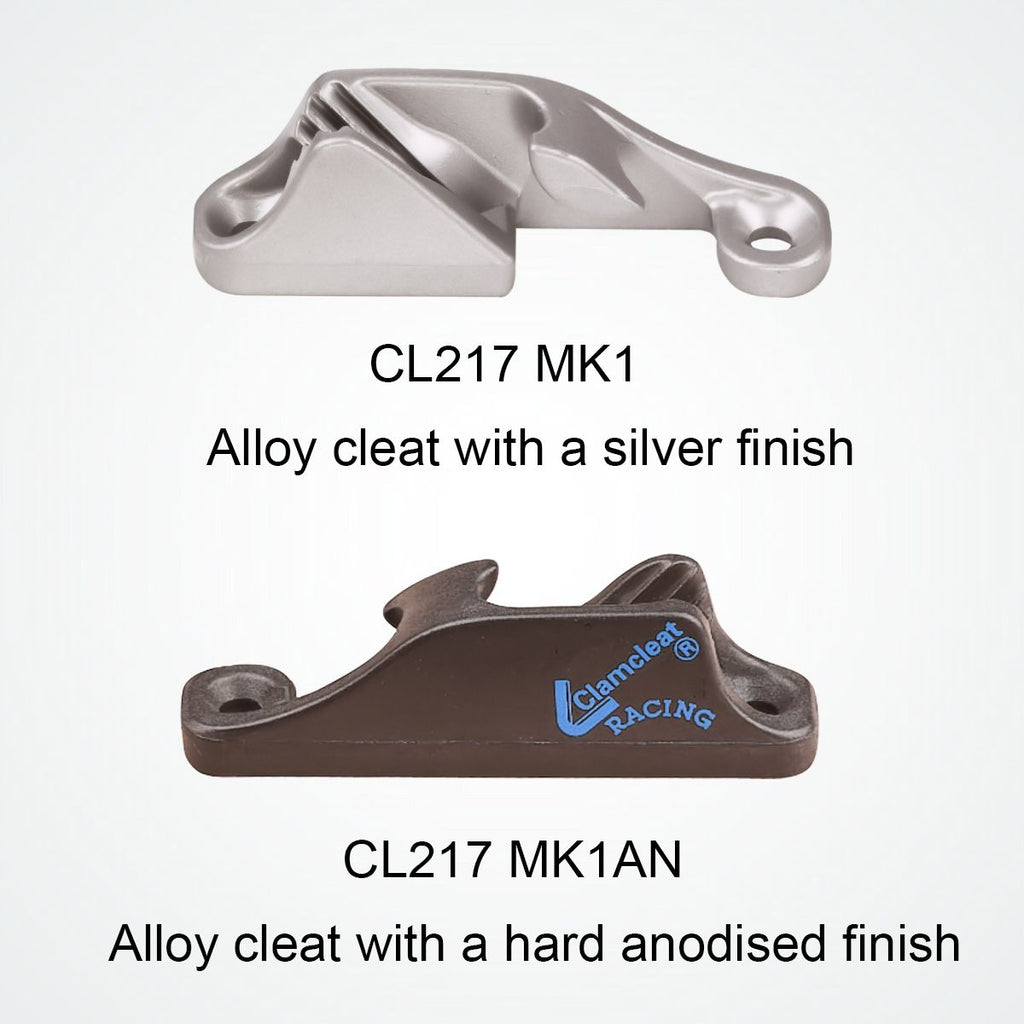

CL217 Mk1 is available in two finishes:

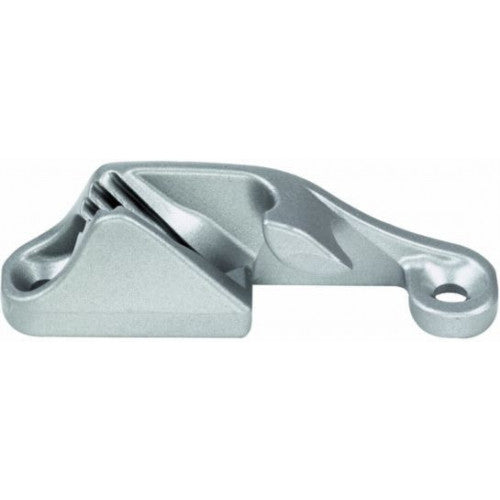

1. CL217 Mk1 has a silver stove enamel finish for a cost effective, high quality coating.

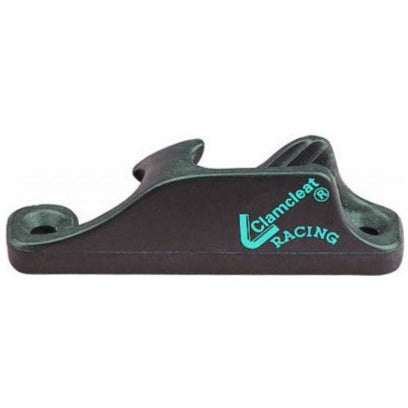

2. CL217 Mk1AN has a hard anodised finish to give a hard wearing surface.

For the Port version of this cleat see CL218 Mk1.

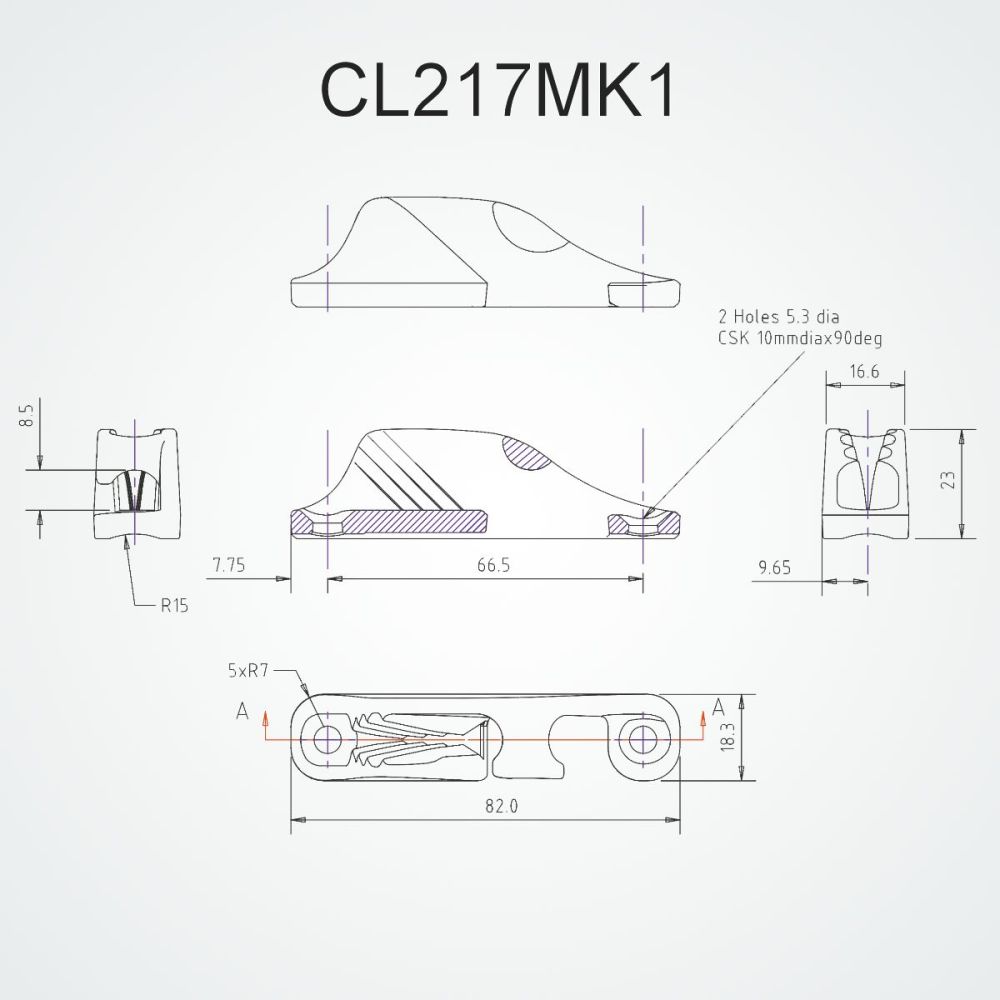

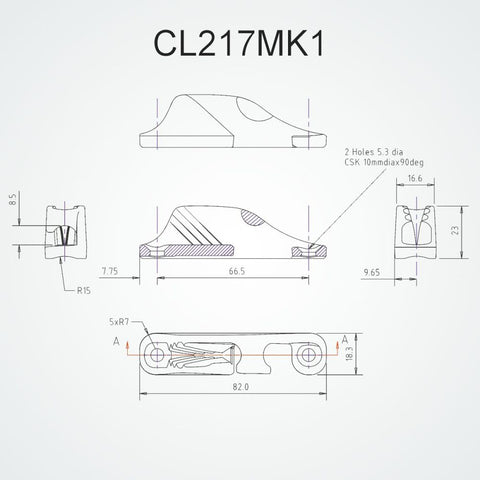

Technical Details		Metric	Imperial

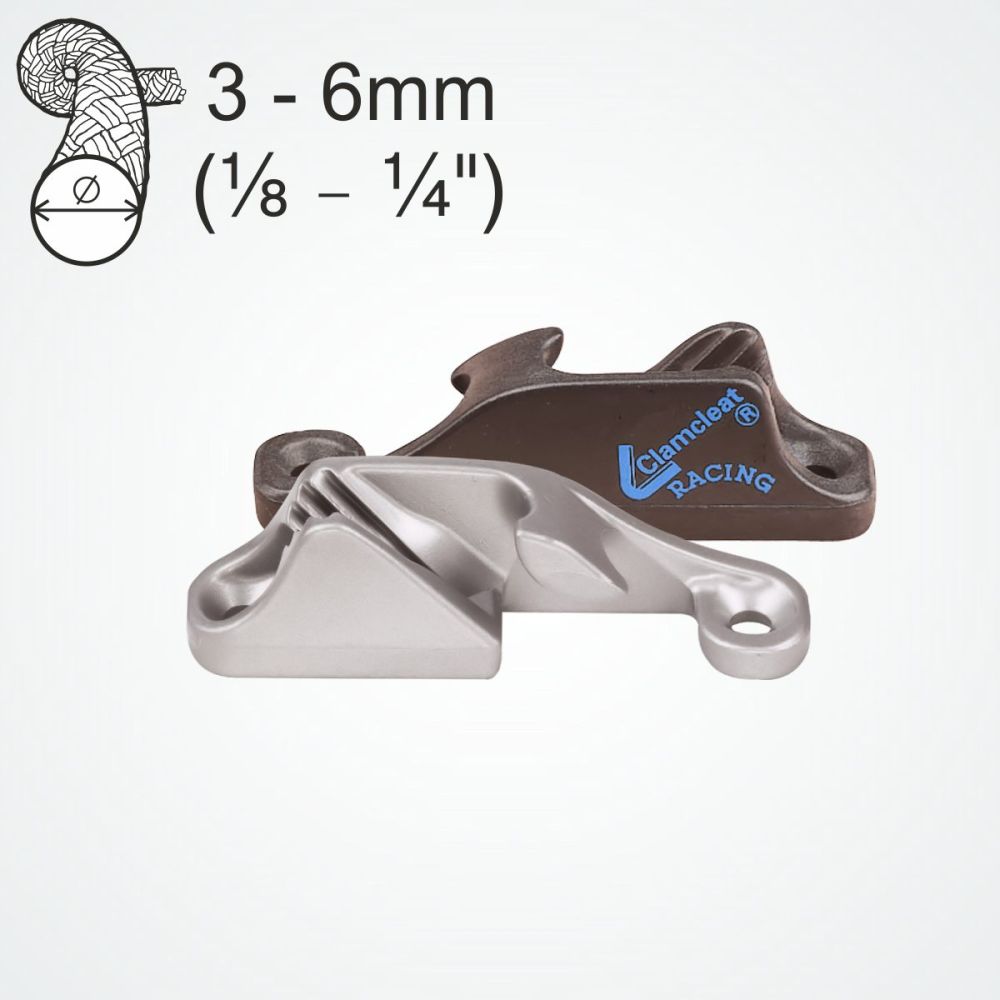

Rope Diameter		3 - 6mm	1/8 - 1/4"
Material		Aluminium	Aluminium
Hole Centres		66mm	2 5/8"
Length		82mm	3 1/4"
Width		18mm	11/16"
Height		23mm	7/8
Bolt Size		M5	#10-24. 3/16"
Screw Size		4.8	No 10
Weight		32gms	1.2oz
