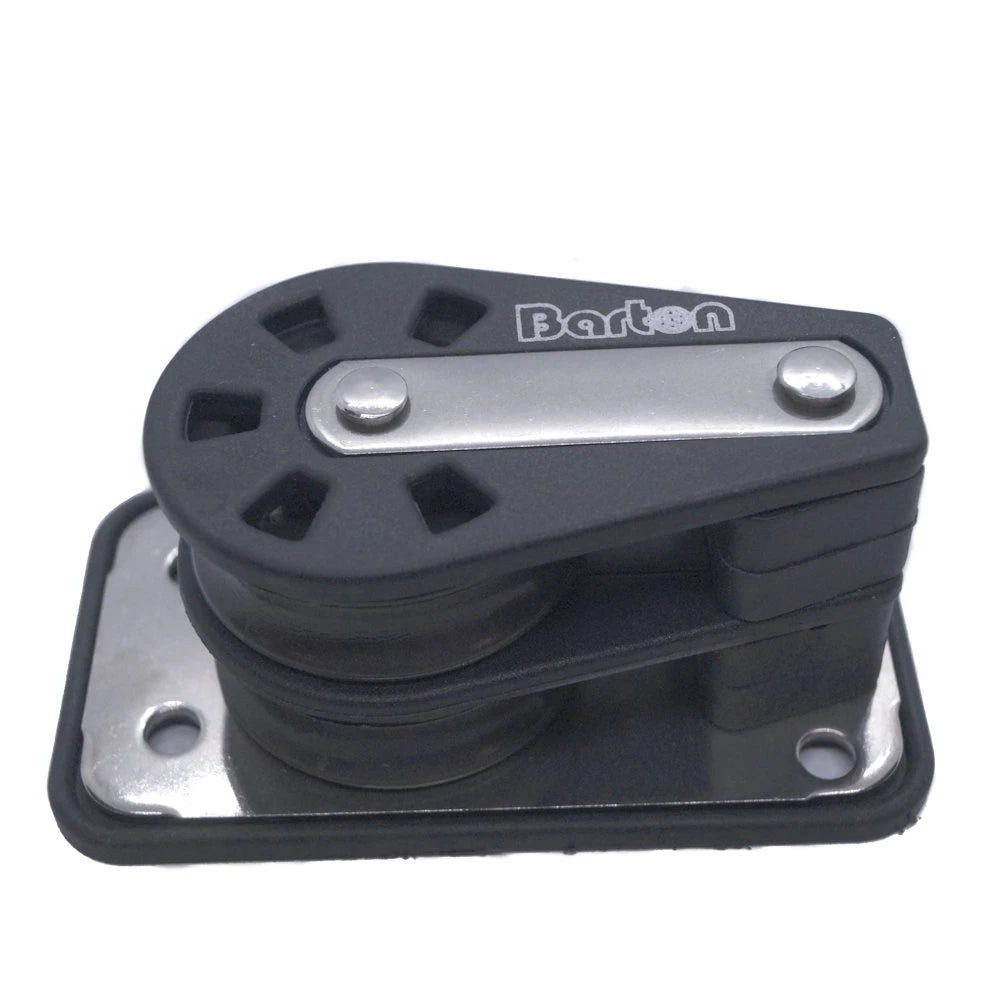

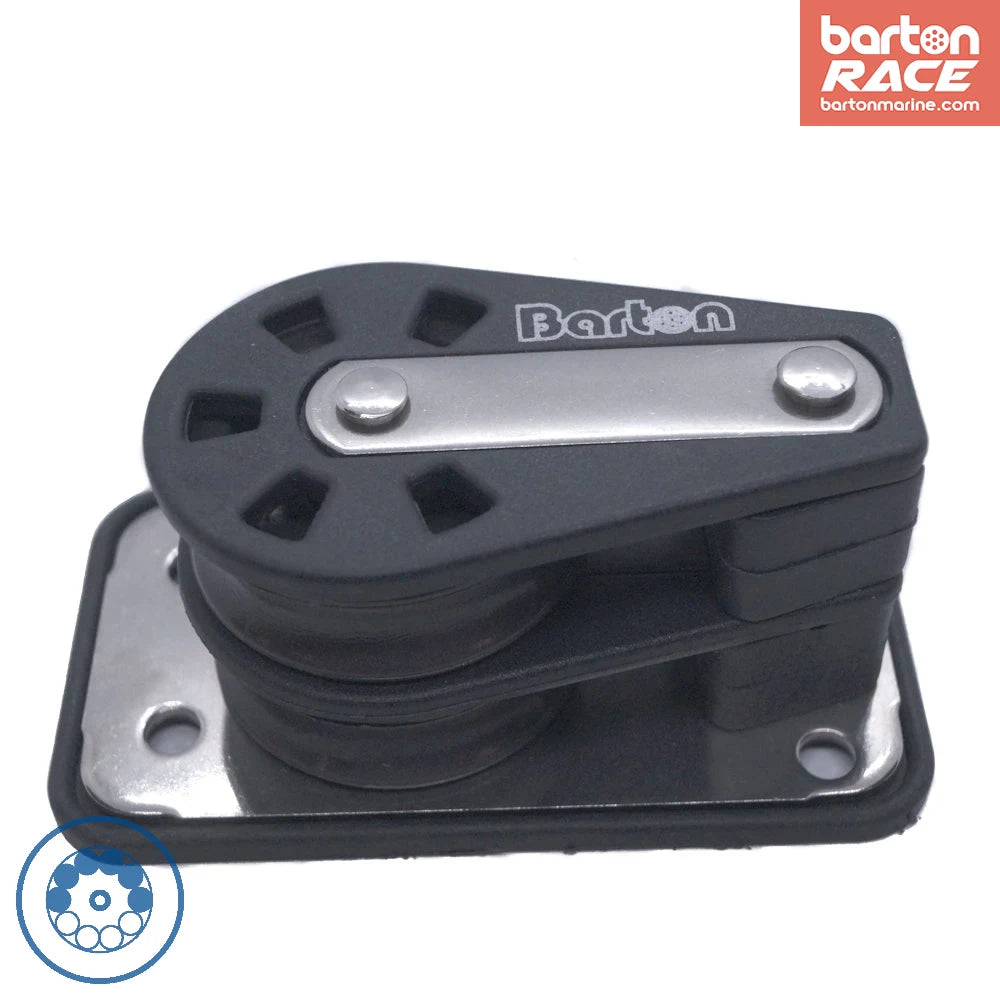

Barton Double Cheek Block, Size 2 N02260 & N12260

The Barton Size 2 Ball Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in plain bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (3/8") rope.

• Break load 740kg (1630lbs)
• SWL 370kg(815lbs)
• Max. rope 8mm (5/16”)
• Sheave diameter single 35mm (1 3/8”) x 11mm (15/32”)
• Sheave diameter fiddle 30/45mm ( 1 3/16” / 1 ¾”) x 11mm (15/32”)
• Ball bearing block maximum rolling load 260kg (573lbs)

A comprehensive range of multiple sheave options, together with fiddles and cam cleat blocks, allow powerful, lightweight tackles to be achieved.

Available as Plain or Ball Bearing Blocks.

Plain bearing blocks:
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Ball bearing blocks:
With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.
