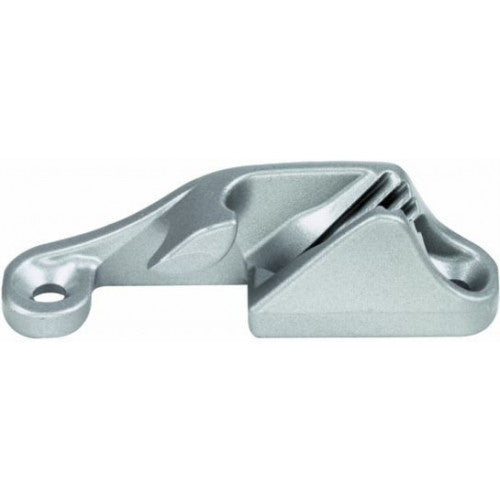

The side entry fairlead allows ropes to be hooked in for cleating
The side entry fairlead allows ropes to be hooked in for cleating, yet easily removed. Ideal as a reaching hook. The CL218 Mk1 can be fitted with a CL814 Keeper, to keep the rope in or out of the teeth - ideal when used under a spar. Using a CL818 Tapered Pad allows the CL218 Mk1 to mounted at an angle.

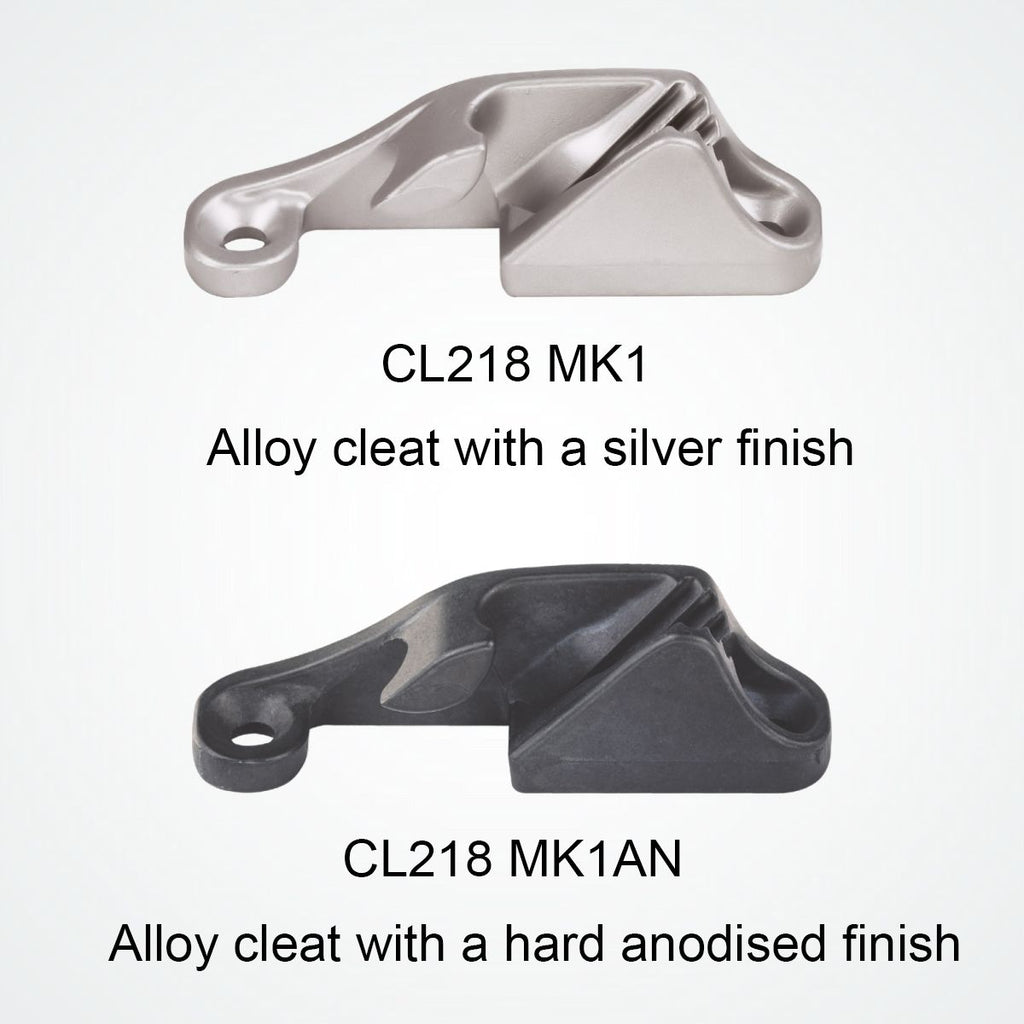

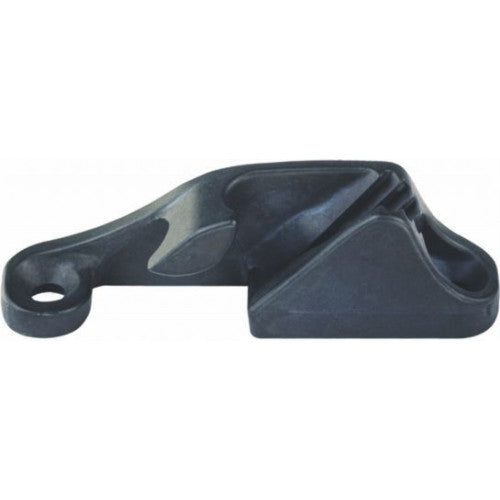

CL218 Mk1 is available in two finishes: 1. CL218 Mk1 has a silver stove enamel finish for a cost effective, high quality coating. 2. CL218 Mk1AN has a hard anodised finish to give a hard wearing surface.
For the Starboard version of this cleat see CL217 Mk1

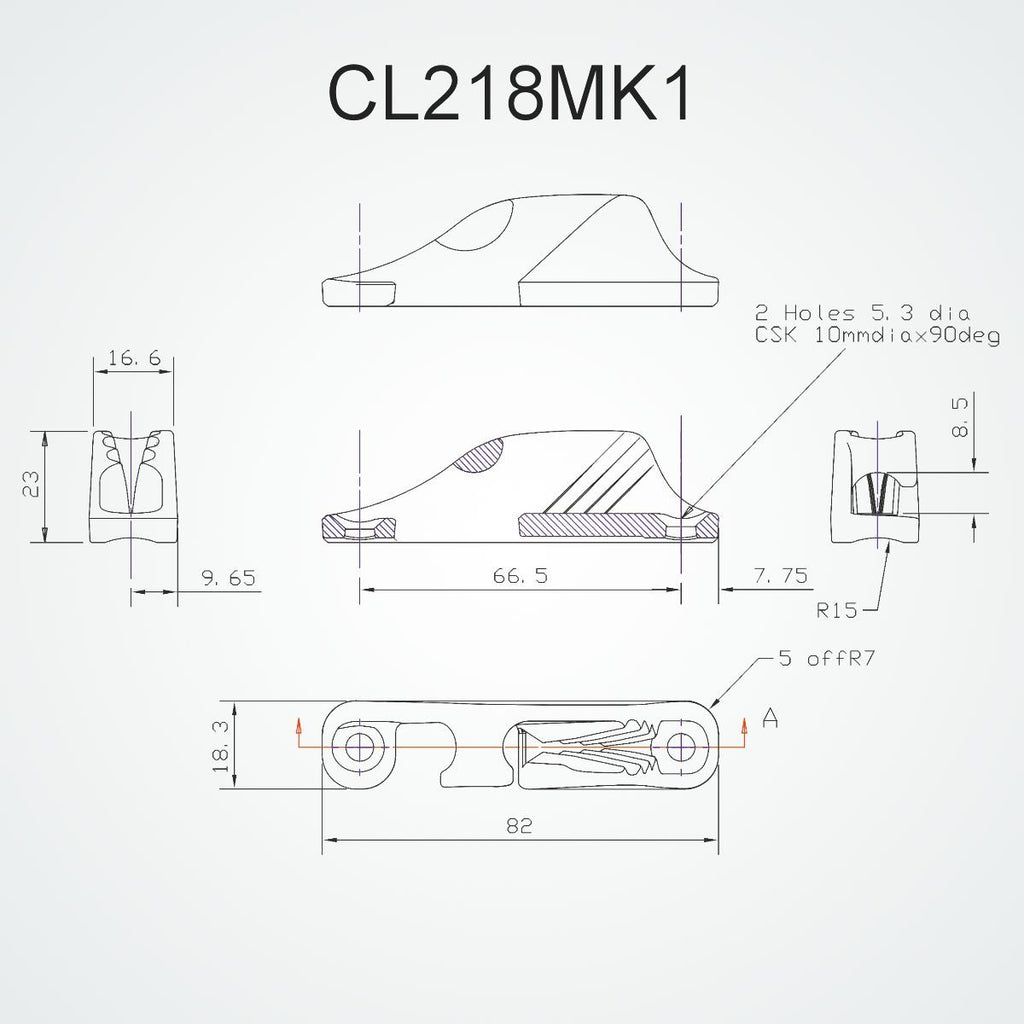

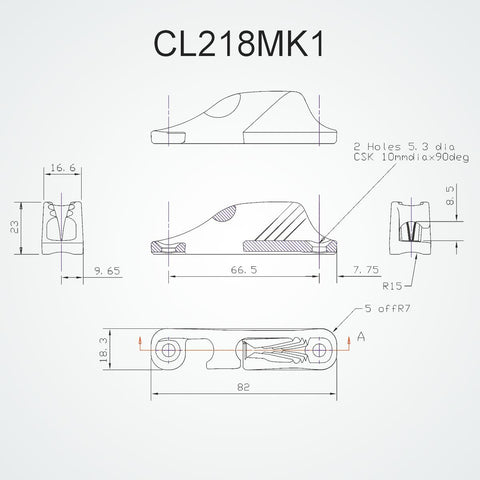

Technical Details | Metric | Imperial | |
---|---|---|---|

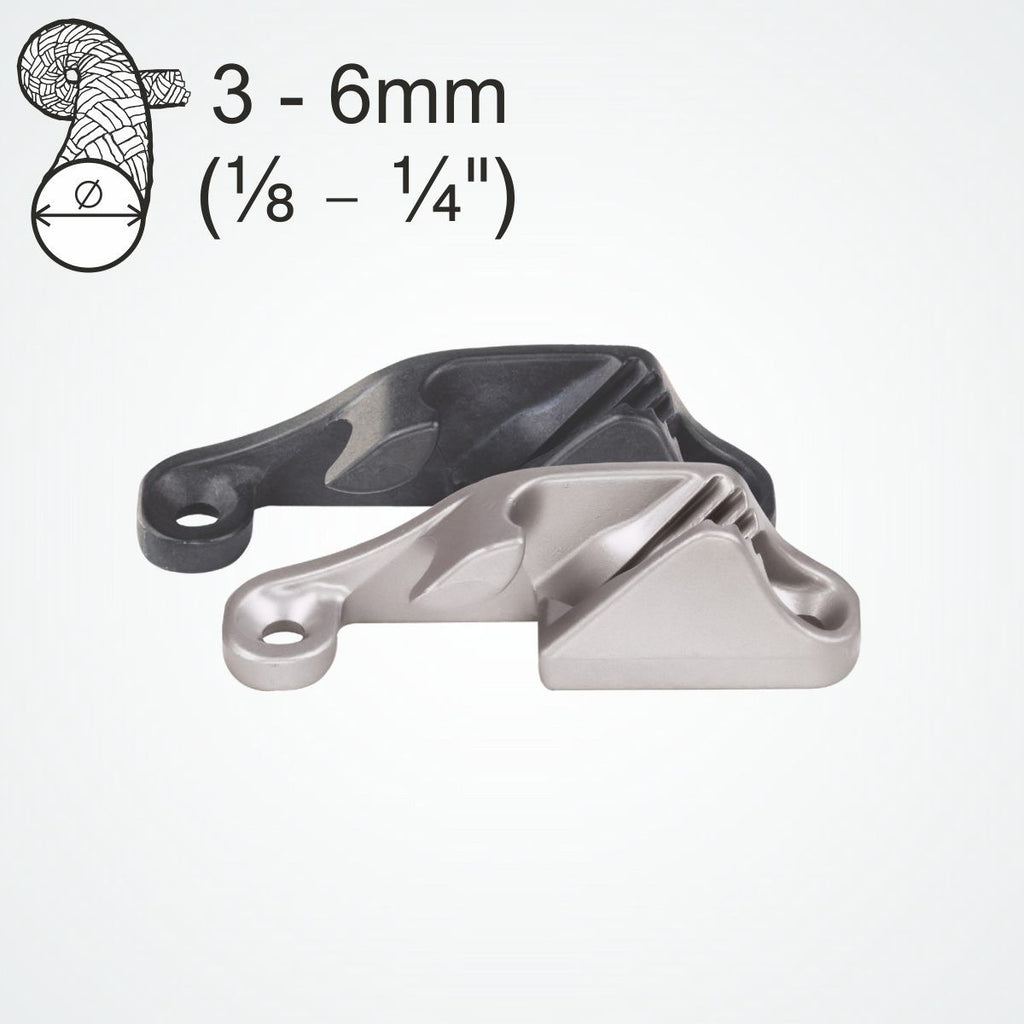

Rope Diameter | 3 - 6mm | 1/8 - 1/4" | |
Material | Aluminium | Aluminium | |
Hole Centres | 66mm | 2 5/8" | |
Length | 82mm | 3 1/4" | |
Width | 18mm | 11/16" | |
Height | 23mm | 7/8 | |
Bolt Size | M5 | #10-24. 3/16" | |
Screw Size | 4.8 | No 10 | |
Weight | 32gms | 1.2oz |
The side entry fairlead allows ropes to be hooked in for cleating
The side entry fairlead allows ropes to be hooked in for cleating, yet easily removed. Ideal as a reaching hook. The CL218 Mk1 can be fitted with a CL814 Keeper, to keep the rope in or out of the teeth - ideal when used under a spar. Using a CL818 Tapered Pad allows the CL218 Mk1 to mounted at an angle.
CL218 Mk1 is available in two finishes: 1. CL218 Mk1 has a silver stove enamel finish for a cost effective, high quality coating. 2. CL218 Mk1AN has a hard anodised finish to give a hard wearing surface.
For the Starboard version of this cleat see CL217 Mk1
Technical Details | Metric | Imperial | |
---|---|---|---|
Rope Diameter | 3 - 6mm | 1/8 - 1/4" | |
Material | Aluminium | Aluminium | |
Hole Centres | 66mm | 2 5/8" | |
Length | 82mm | 3 1/4" | |
Width | 18mm | 11/16" | |
Height | 23mm | 7/8 | |
Bolt Size | M5 | #10-24. 3/16" | |
Screw Size | 4.8 | No 10 | |
Weight | 32gms | 1.2oz |
